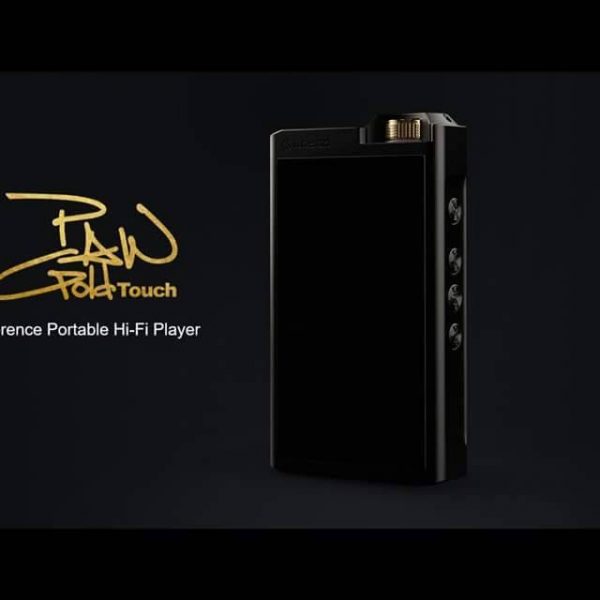

Lotoo Paw Gold Touch

คำอธิบาย

DAP Highlights:

– Price: $2900 (RMB 17,999)
– 3.77″ IPS Touch Screen
– Lotoo OS (NOT Android)
– Bluetooth 4.1 with LDAC
– 4.4mm Balanced Output
– Power Output: 500mW at 32Ohm load
– USB DAC (Fully Asynchronous)
– USB-C Port, USB 3.1 Protocol
– Memory: SD Card upto 2TB, Supports UHS II
– 10+ Hrs Battery Life



Specifications:

Body:
– Dimensions: 119mm x 68.6mm x 21mm
– Weight: 275g



Screen:
– Touchscreen
– Size: 3.77″ IPS Display
– Resolution: 800 x 480
– Gorilla Glass (Std 5)
– DLC Coating for Added Strength
– AF (Anti-Fingerprint) Coating

Battery:
– Playback Time: 10+ Hrs
– Capacity: 5500 mAH

USB:
– USB-C with upto USB 3.1 protocol
– USB DAC Functionality
– USB Charging

Wireless:
– Bluetooth 4.1 with LDAC support
– WiFi b/g/n (Purpose Still Unknown)

Memory:
– SD Card
– Support Upto 2TB UHS II

Software:
– Lotoo OS (Not Android or Linux)
– PMEQ II with 5 Filters Per Setting
– ATE

Audio:
– DAC Chip: AKM 4497EQ
– Support upto PCM 768kHz and DSD512
– Headphone Out – 4.4mm Balanced & 3.5mm Single Ended
– Line Out – 4.4mm
– Output Power: 500 mW per Channel at 32 Ohms

4.4mm Balanced Headphone Out:
– Frequency Response: 20 – 20,000 kHz (+0.008/-0.34 dB)
– THD+N: 0.00015%
– SNR: 127 dB
– Channel Separation: -126 dB
– Dynamic Range: 127 dB
– High Gain: +14.4 dBu
– Low Gain: -10 dBu

4.4mm Line Out:
– Frequency Response: 20 – 20,000 kHz (+0.008/-0.34 dB)
– THD+N: 0.00015%
– SNR: 127 dB
– Channel Separation: -126 dB
– Dynamic Range: 127 dB
– Gain: +14.4 dBu

3.5mm Singel Ended Headphone Out:
– Frequency Response: 20 – 20,000 kHz (+0.006/-0.38 dB)
– THD+N: 0.00045%
– SNR: 123 dB
– Channel Separation: Unknown
– Dynamic Range: 123 dB
– High Gain: +16 dBu
– Low Gain: -9 dBu
